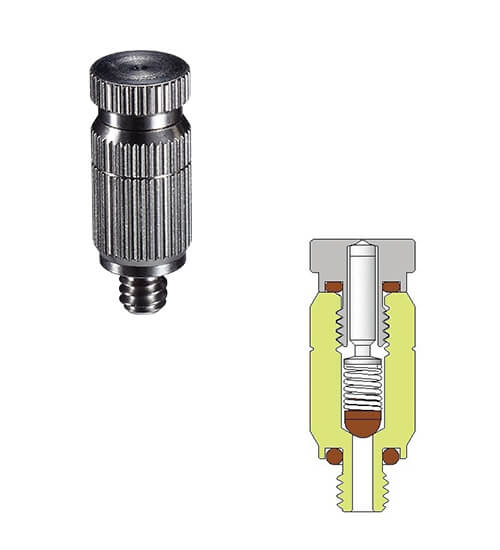

NFN-Type

10/24unc/2A

THREAD
10/24unc/2A
MATERIAL / NOZZLE TIP
Brass / Stainless Steel
Ni-Plated Brass / Stainless Steel
Complete 303 Stainless Steel
Complete 316 Stainless Steel
MATERIAL / ADAPTER
Brass
Ni-Plated Brass
Complete 303 Stainless Steel
Complete 316 Stainless Steel
FILTER
PE Filter
304 Stainless Steel Mesh Filter
ORIFICE SIZE
  • 0.10mm/0.004"
  • 0.15mm/0.006"
  • 0.20mm/0.008"
  • 0.30mm/0.012"
  • 0.40mm/0.016"
  • 0.50mm/0.020"
  • 0.60mm/0.024"
  • 0.80mm/0.032"
  • 1.00mm/0.040"
  • 1.20mm/0.048"

* Other specs will be available on request.

3D Exploded-View Animation

Technical Information

NFN- type, BS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice PSI 100 200 300 400 500 600 700 800 900 1000
#15 0.15mm LPM - 0.103mm - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
#20 0.20mm LPM - - 0.041 0.047 0.053 0.058 0.063 0.067 0.071 0.075
0.008" GPM - - 0.011 0.013 0.014 0.015 0.017 0.018 0.019 0.020
#30 0.30mm LPM - 0.052 0.064 0.073 0.082 0.090 0.097 0.104 0.110 0.116
0.012" GPM - 0.014 0.017 0.019 0.022 0.024 0.026 0.027 0.029 0.031
#40 0.40mm LPM 0.052 0.074 0.091 0.105 0.117 0.129 0.139 0.148 0.157 0.166
0.016" GPM 0.014 0.020 0.024 0.028 0.031 0.034 0.037 0.039 0.042 0.044
#50 0.50mm LPM 0.070 0.098 0.120 0.139 0.156 0.170 0.184 0.197 0.209 0.220
0.020" GPM 0.018 0.026 0.032 0.037 0.041 0.045 0.049 0.052 0.055 0.058
NFN- type, BS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice Bar 10 15 20 25 30 35 40 45 50 55 60 65 70
#15 0.15mm LPM - - - 0.030 0.033 0.036 0.038 0.040 0.043 0.045 0.047 0.049 0.050
0.006" GPM - - - 0.008 0.009 0.009 0.010 0.011 0.011 0.012 0.012 0.013 0.013
#20 0.20mm LPM - - 0.040 0.045 0.049 0.053 0.057 0.061 0.064 0.067 0.070 0.073 0.076
0.008" GPM - - 0.011 0.012 0.013 0.014 0.015 0.016 0.017 0.018 0.018 0.019 0.020
#30 0.30mm LPM - 0.054 0.062 0.070 0.077 0.083 0.088 0.094 0.099 0.104 0.108 0.113 0.117
0.012" GPM - 0.014 0.016 0.018 0.020 0.022 0.023 0.025 0.026 0.027 0.029 0.030 0.031
#40 0.40mm LPM 0.063 0.077 0.089 0.100 0.109 0.118 0.126 0.134 0.141 0.148 0.155 0.161 0.167
0.016" GPM 0.017 0.020 0.024 0.026 0.029 0.031 0.033 0.035 0.037 0.039 0.041 0.043 0.044
#50 0.50mm LPM 0.084 0.103 0.118 0.132 0.145 0.157 0.168 0.178 0.187 0.196 0.205 0.214 0.222
0.020" GPM 0.022 0.027 0.031 0.035 0.038 0.041 0.044 0.047 0.049 0.052 0.054 0.056 0.059
NFN- type, SS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice PSI 100 200 300 400 500 600 700 800 900 1000
#15 0.15mm LPM - - - 0.032 0.035 0.039 0.042 0.045 0.047 0.050
0.006" GPM - - - 0.008 0.009 0.010 0.011 0.012 0.013 0.013
#20 0.20mm LPM - - 0.037 0.042 0.047 0.052 0.056 0.060 0.064 0.067
0.008" GPM - - 0.010 0.011 0.013 0.014 0.015 0.016 0.017 0.018
#30 0.30mm LPM - 0.051 0.062 0.071 0.080 0.088 0.095 0.101 0.107 0.113
0.012" GPM - 0.013 0.016 0.019 0.021 0.023 0.025 0.027 0.028 0.030
#40 0.40mm LPM 0.054 0.077 0.094 0.109 0.122 0.133 0.144 0.154 0.163 0.172
0.016" GPM 0.014 0.020 0.025 0.029 0.032 0.035 0.038 0.041 0.043 0.045
#50 0.50mm LPM 0.060 0.085 0.104 0.120 0.134 0.146 0.158 0.169 0.179 0.189
0.020" GPM 0.016 0.022 0.027 0.032 0.035 0.039 0.042 0.045 0.047 0.050
NFN- type, SS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice Bar 10 15 20 25 30 35 40 45 50 55 60 65 70
#15 0.15mm LPM - - - 0.030 0.033 0.036 0.038 0.040 0.043 0.045 0.047 0.049 0.050
0.006" GPM - - - 0.008 0.009 0.009 0.010 0.011 0.011 0.012 0.012 0.013 0.013
#20 0.20mm LPM - - 0.036 0.040 0.044 0.048 0.051 0.054 0.057 0.060 0.062 0.065 0.068
0.008" GPM - - 0.010 0.011 0.012 0.013 0.013 0.014 0.015 0.016 0.017 0.017 0.018
#30 0.30mm LPM - 0.053 0.061 0.068 0.075 0.081 0.086 0.091 0.096 0.101 0.105 0.110 0.114
0.012" GPM - 0.014 0.016 0.018 0.020 0.021 0.023 0.024 0.025 0.027 0.028 0.029 0.030
#40 0.40mm LPM 0.065 0.080 0.093 0.104 0.113 0.123 0.131 0.139 0.146 0.154 0.160 0.167 0.173
0.016" GPM 0.017 0.021 0.024 0.027 0.030 0.032 0.035 0.037 0.039 0.041 0.042 0.044 0.046
#50 0.50mm LPM 0.072 0.088 0.102 0.114 0.125 0.135 0.144 0.153 0.161 0.169 0.176 0.182 0.190
0.020" GPM 0.019 0.023 0.027 0.030 0.033 0.036 0.038 0.040 0.043 0.045 0.047 0.048 0.050
  • Other sizes available on request
  • The flow rates above are nozzles without anti-drip and filter.
  • Fog nozzle flow rates tested with water under controlled conditions.
  • Flow rates can vary due to environment, fluid viscosity and fluid density.

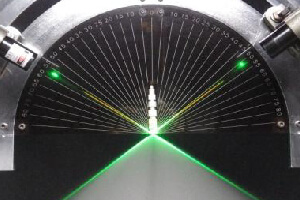

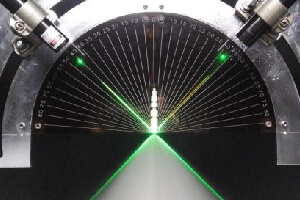

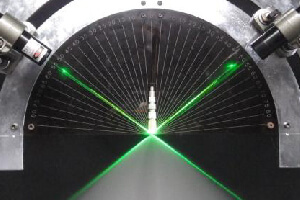

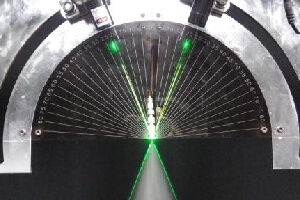

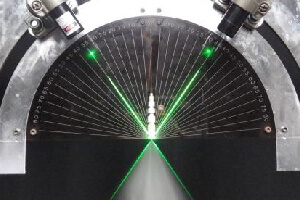

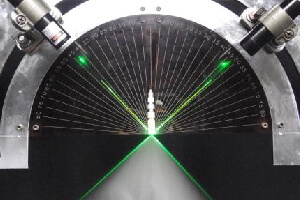

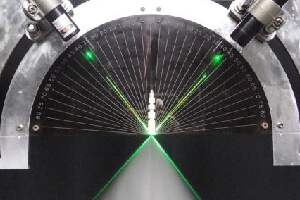

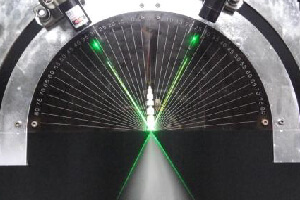

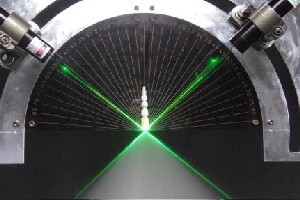

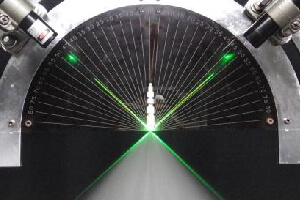

Spray Angle for NFN type

Item Orifice Contour based angle
(degree)		 Picture
NFN-1010SS/1010DSS 0.10/.004" 40~50
NFN-1510SS/1010DSS 0.15/.006" 55~65
NFN-2010SS/1010DSS 0.20/.008" 65~75
NFN-3010SS/1010DSS 0.30/.012" 75~85
NFN-4010SS/1010DSS 0.40/.016" 85~95
NFN-5010SS/1010DSS 0.50/.020" 90~100
NFN-6010SS/1010DSS 0.60/.024" 90~100
NFN-8010SS/1010DSS 0.80/.032" 95~105
NFN-10010SS/1010DSS 1.00/.040" 100~110
NFN-12010SS/1010DSS 1.20/.048" 105~115
  • All nozzles were tested at 1,000 PSI.

Nozzle Droplet Size Report

  • All nozzles were tested at 1,000 PSI using water at 70°F (21.1°C).
  • The room humidity was between 40 and 50 % during the tests.
  • The patternation measurements were conducted using the SETscan OP600 patternator that can measure sprays up to a maximum diameter of 7 inches.
Item Orifice Maximum
of the smallest Droplet Size		 Maximum
of the biggest Droplet Size		 Majority
of the Droplet Size
NFN-1010SS/cv1010DS 0.10/.004" 5.90 25.20 11.0㎛
NFN-1510SS/cv1010DS 0.15/.006" 6.40 27.10 11.0㎛
NFN-2010SS/cv1010DS 0.20/.008" 7.00 27.30 11.0㎛
NFN-3010SS/cv1010DS 0.30/.012" 7.16 33.23 12.0㎛
NFN-4010SS/cv1010DS 0.40/.016" 8.00 37.50 15.0㎛
NFN-5010SS/cv1010DS 0.50/.020" 8.90 41.70 19.0㎛
NFN-6010SS/cv1010DS 0.60/.024" 9.10 44.80 17.0㎛
NFN-8010SS/cv1010DS 0.80/.032" 9.40 55.00 18.0㎛
NFN-10010SS/cv1010DS 1.00/.040" 10.40 63.10 22.0㎛
NFN-12010SS/cv1010DS 1.20/.048" 15.50 119.80 32.0㎛
