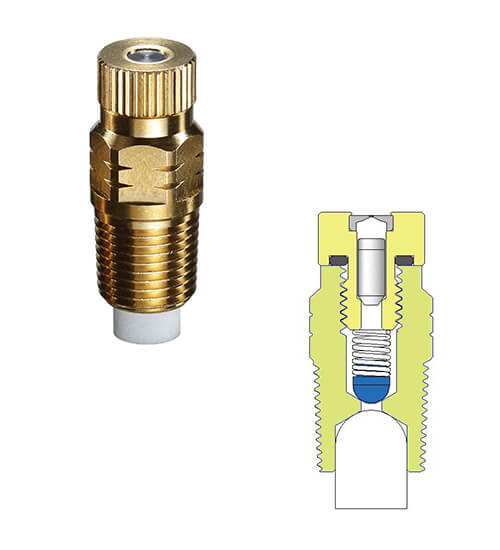

MTP-Type

1/8-27NPT

THREAD
1/8-27NPT
MATERIAL / NOZZLE TIP
Brass / Stainless Steel
Ni-Plated Brass / Stainless Steel
MATERIAL / ADAPTER
Brass
Ni-Plated Brass
FILTER
PE Filter
ORIFICE SIZE
  • 0.15mm/0.006"
  • 0.20mm/0.008"
  • 0.30mm/0.012"
  • 0.40mm/0.016"
  • 0.50mm/0.020"
  • 0.60mm/0.024"
  • 0.80mm/0.032"
  • 1.00mm/0.040"
  • 1.20mm/0.048"

* Other specs will be available on request.

3D Exploded-View Animation

Technical Information

MTP- type, BS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice PSI 100 200 300 400 500 600 700 800 900 1000
#15 0.15mm LPM - - - 0.030 0.033 0.036 0.039 0.042 0.045 0.047
0.006" GPM - - - 0.008 0.009 0.010 0.010 0.011 0.012 0.012
#20 0.20mm LPM - - 0.042 0.048 0.054 0.059 0.064 0.068 0.072 0.076
0.008" GPM - - 0.011 0.013 0.014 0.016 0.017 0.018 0.019 0.020
#30 0.30mm LPM - 0.053 0.065 0.075 0.083 0.091 0.099 0.106 0.112 0.118
0.012" GPM - 0.014 0.017 0.020 0.022 0.024 0.026 0.028 0.030 0.031
#40 0.40mm LPM 0.052 0.073 0.089 0.103 0.115 0.126 0.136 0.146 0.155 0.163
0.016" GPM 0.014 0.019 0.024 0.027 0.030 0.033 0.036 0.039 0.041 0.043
#50 0.50mm LPM 0.067 0.094 0.116 0.133 0.149 0.163 0.177 0.189 0.200 0.211
0.020" GPM 0.018 0.025 0.031 0.035 0.039 0.043 0.047 0.050 0.053 0.056
MTP- type, BS FLOW RATE / OPERATING PRESSURE RANGE
Series # Orifice Bar 10 15 20 25 30 35 40 45 50 55 60 65 70
#15 0.15mm LPM - - - 0.028 0.031 0.033 0.036 0.038 0.040 0.042 0.044 0.046 0.047
0.006" GPM - - - 0.007 0.008 0.009 0.009 0.010 0.011 0.011 0.012 0.012 0.013
#20 0.20mm LPM - - 0.041 0.046 0.050 0.054 0.058 0.061 0.065 0.068 0.071 0.074 0.077
0.008" GPM - - 0.011 0.012 0.013 0.014 0.015 0.016 0.017 0.018 0.019 0.019 0.020
#30 0.30mm LPM - 0.055 0.064 0.071 0.078 0.084 0.090 0.095 0.100 0.105 0.110 0.115 0.119
0.012" GPM - 0.015 0.017 0.019 0.021 0.022 0.024 0.025 0.027 0.028 0.029 0.030 0.031
#40 0.40mm LPM 0.062 0.076 0.088 0.098 0.108 0.116 0.124 0.132 0.139 0.146 0.152 0.158 0.164
0.016" GPM 0.016 0.020 0.023 0.026 0.028 0.031 0.033 0.035 0.037 0.038 0.040 0.042 0.043
#50 0.50mm LPM 0.080 0.098 0.114 0.127 0.139 0.150 0.161 0.170 0.180 0.188 0.197 0.205 0.213
0.020" GPM 0.021 0.026 0.030 0.034 0.037 0.040 0.042 0.045 0.047 0.050 0.052 0.054 0.056
  • Other sizes available on request
  • The flow rates above are nozzles without anti-drip and filter.
  • Fog nozzle flow rates tested with water under controlled conditions.
  • Flow rates can vary due to environment, fluid viscosity and fluid density.
